Tiffin Motorhomes GH1 Motor Home Class B - Diesel RVs For Sale

Previous
Next
1 of 14

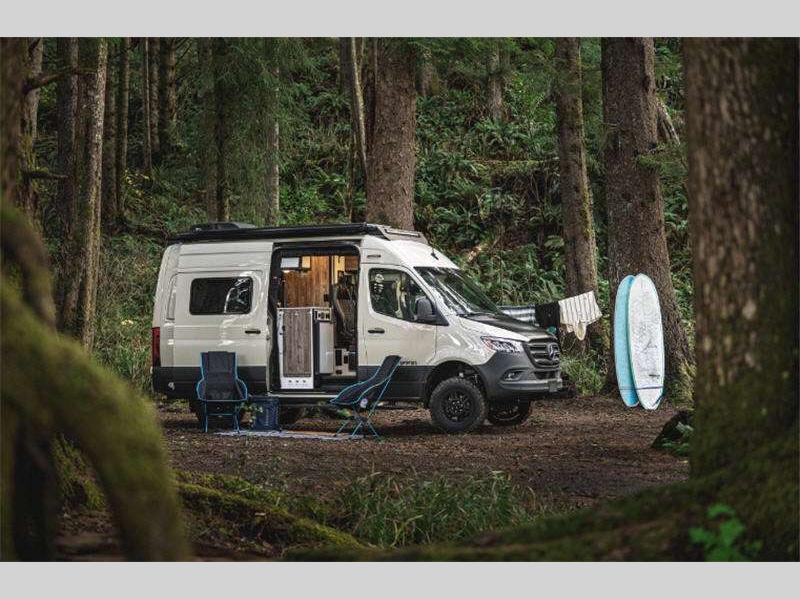

When you are driven to take the path less traveled, but you long for the comforts of home, Tiffin has the answer...it's called the GH1 Class B diesel motorhome. Built on a Mercedes Benz all-wheel drive chassis featuring a Fox Shocks suspension package, this van can travel to all the places you've only dreamed of, and have all the comforts right with you.



Make it a day, a week, or month long journey. The GH1 features a hydronic heating system with climate controls featuring a wall-mounted thermostat with built-in temperature sensor keeping you comfortable day and night. Wiring prep for Starlink Pro will help to keep you connected so you can actually go off-grid and stay awhile. The unit sleeps two, and features a wet bath for added convenience. And, the power lift bed with 49" x 79" gear garage below allows you to pack everything that you need to enjoy time on the road.



Let the premium performance of the Tiffin GH1 Class B diesel take you on a journey like never before!





  • GH1 Std. Model

    GH1 Std. Model Floorplan Image

    Tiffin Motorhomes GH1 Class B diesel motorhome highlights: 49" x 79" Gear Garage ... more about GH1 Std. Model

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 19 ft 6 in
    Ext Width 7 ft 8 in
    Ext Height 10 ft
    Int Height 6 ft 3 in
    Interior Color Stargazer
    Exterior Color Blue Grey, Arctic White, Selenite Grey, Pebble Grey
    Hitch Weight 5000 lbs
    GVWR 9050 lbs
    Fresh Water Capacity 26 gals
    Grey Water Capacity 22 gals
    Black Water Capacity 4.5 gals
    Tire Size LT 245/70R 17
    Fuel Type Diesel
    Engine 2.0L 4-Cylinder Twin Scroll Turbo
    Chassis Mercedes-Benz 2500 Sprinter
    Horsepower 211 hp
    Fuel Capacity 24.5 gals
    Torque 332 ft-lb
    Refrigerator Type 12 Volt
    Refrigerator Size 3.1 cu ft
    Cooktop Burners 1
    Shower Size 24" x 36"
    Number of Awnings 1
    AC BTU 15000 btu
    Awning Info Girard Side Mount Power w/LED Lights
    Gross Combined Weight 13930 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp

GH1 Features:

Standard Features (2025)



Chassis and Drivetrain Features

  • Mercedes-Benz® 2500 Sprinter High Roof Cargo Van
  • Mercedes-Benz 2.0L 4 Cylinder Twin Scroll Turbo 211HP Diesel Engine with 332 lb-ft Torque
  • All-Wheel Drive
  • 220-Amp Primary/ 250 Amp Secondary Alternators
  • Mercedes-Benz® 9-Speed Shiftable Automatic
  • Custom Offroad Tiffin Adventure Wheels
  • Fox Shocks 2.5" Rear Shocks Replacement w/Front Auxiliary Shocks
  • Front and Rear LT 245/70R 17 BF Goodrich® All-Terrain T/A® KO2 Tires
  • (1) 12-Volt AGM Chassis Battery
  • Front Radiator
  • Four Wheel ABS Brakes
  • Manual Parking Brake
  • Active Brake Assist (Collision Mitigation)
  • Active Distance Assist Distronic® (Adaptive Cruise Control)
  • Hill Start Assist
  • Attention Assist
  • Traffic Sign Assist
  • Load Adaptive Electronic Stability Program (ESP)
  • High Beam Assist
  • Active Lane Keeping Assist
  • Tire Pressure Monitoring

Electrical Features

  • Hydronic Heating & Electronic Appliance Equipped Coach
  • 3,000-Watt Pure Sine Wave Inverter/Charger
  • 540-Amp Hour Battle Born Lithium-Ion Battery Kit
  • (1) 15,000-BTU Gree Eco-Cool Air Conditioner with Heat Pump, Soft-start and Bluetooth Capability
  • Wall-mounted Thermostat with Built-in Temperature Sensor
  • Aqua-Hot® 125 Modular Diesel Heat Exchanger
  • SmartPlug® Detachable 30-Amp Shore Power Cord
  • (1) 220-Watt Solar Panel with (1) 30-Amp Controller
  • Mercedes-Benz® Wireless Internet Access
  • Roof Port Wiring Access for Aftermarket Electronics
  • 12-Volt Breaker Panel
  • 12-Volt Disconnect Switch
  • USB Receptacles Throughout Coach
  • Wire Prep for Starlink® Pro

Electrical Add-On Options

  • Factory-Installed Starlink Pro (Optional)
  • 810-Amp Hour Max Power Lithium-Ion Battery Kit (Optional)

Plumbing

  • Aqua-Hot® 125 Modular Diesel Heat Exchanger
  • Water Heater Bypass System
  • Water Filter
  • Water Pump
  • Low-point Water Drain Lines
  • Gravity Water Fill
  • Exterior Water Fill Valve
  • SeeLeveL™ Tank Monitor
  • Fresh Water Hookup for City Water and Tank Fill
  • Sewer Hose Storage
  • Galley Sink Drain Macerator Pump
  • Fresh Water Recirculation System (Showermiser)

Exterior

  • (1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting
  • Low profile roof rack
  • Tinted Acrylic Windows
  • Single-Row Low-Profile Light Bar
  • Exterior Patio Light
  • Fog Lights
  • LED Lights Under Exterior Running Boards
  • Heated, Electrically Adjustable Side-view Mirrors
  • Screen Door Package
  • Fixed Side-mounted All-Welded Ladder
  • Rear Mud Guards
  • Low-Profile Running Board with 12-Volt Lighting
  • Fold-down Table
  • ARB On-Board Air Compressor w/ Front and Rear Chucks

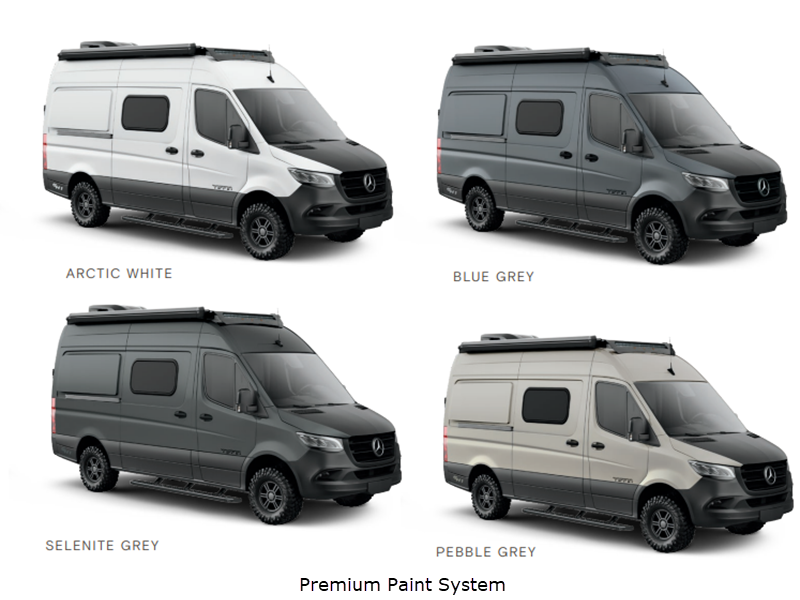

Paint Options

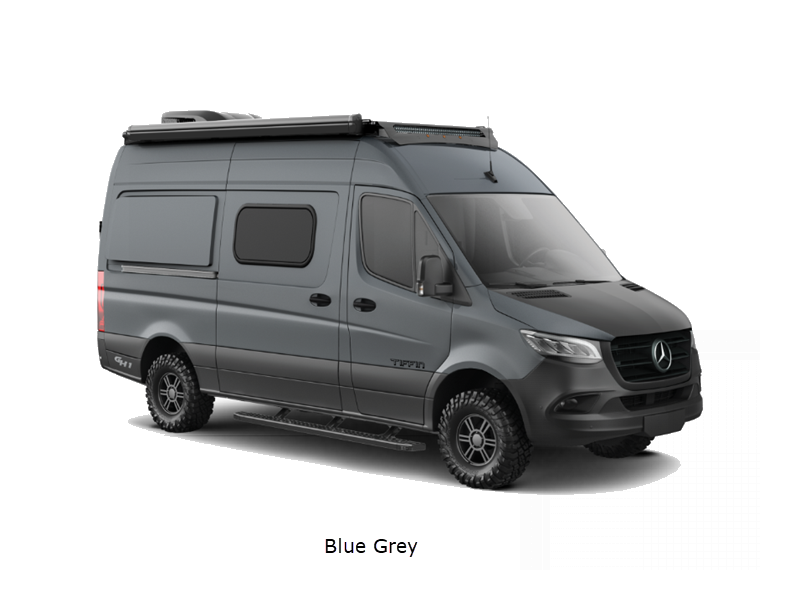

  • Blue Grey

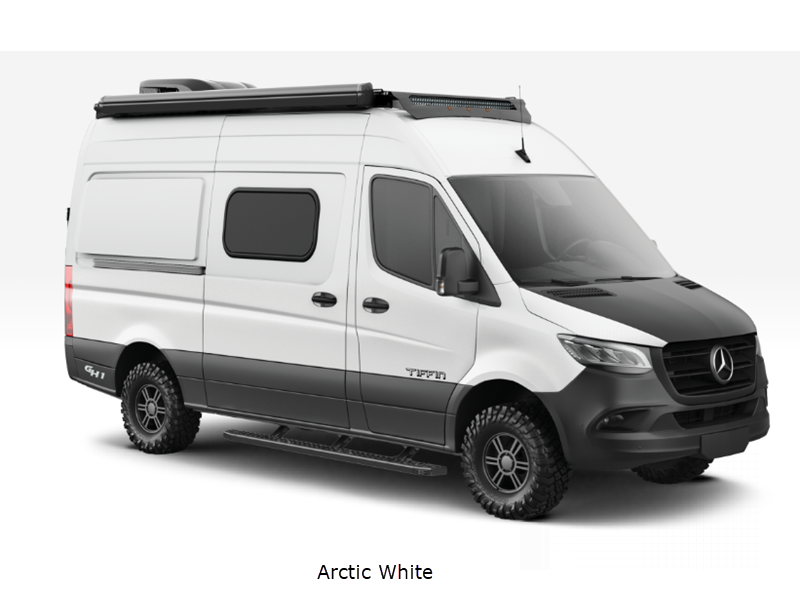

  • Arctic White

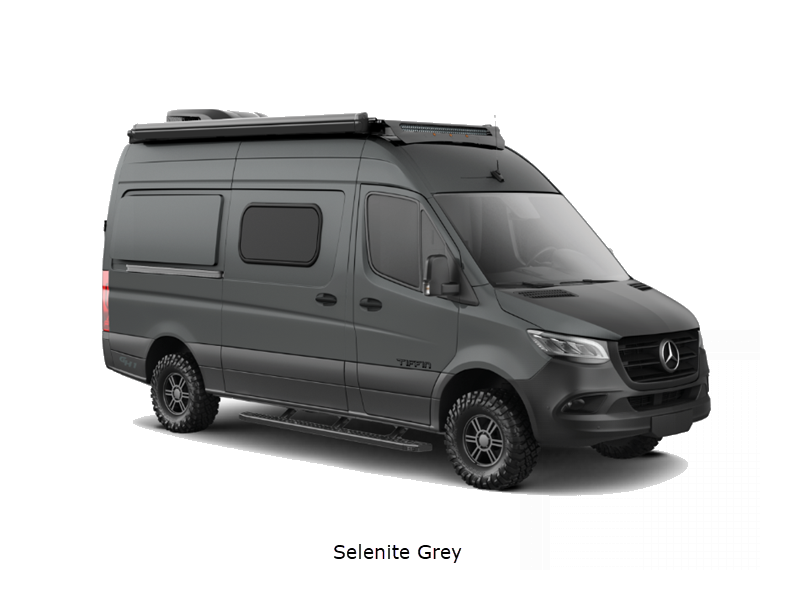

  • Selenite Grey

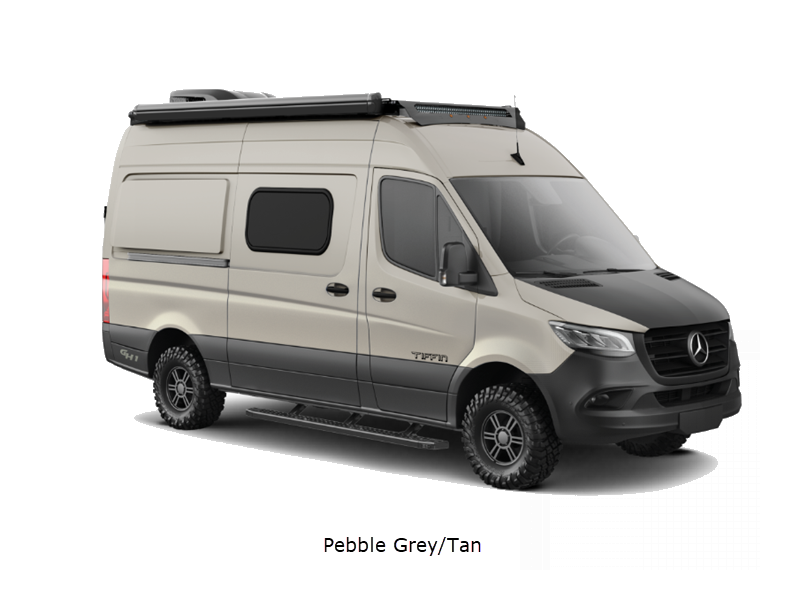

  • Pebble Grey

Interior

  • Stargazer Interior Décor Package
  • TecnoForm® Cabinetry
  • Grey Nickel Plate Thermoplastic Polyolefin Flooring
  • Dimmable LED Lighting
  • Interior Multicolor Accent Lighting
  • Carbon Monoxide Detector
  • LPG Leak Detector
  • Smoke Detector
  • Fire Extinguisher
  • Solar Shades
  • Powered Roof Vents
  • Solid Surface Countertop

Driver's Compartment Features

  • Heated Leather Seats with Electronic Controls

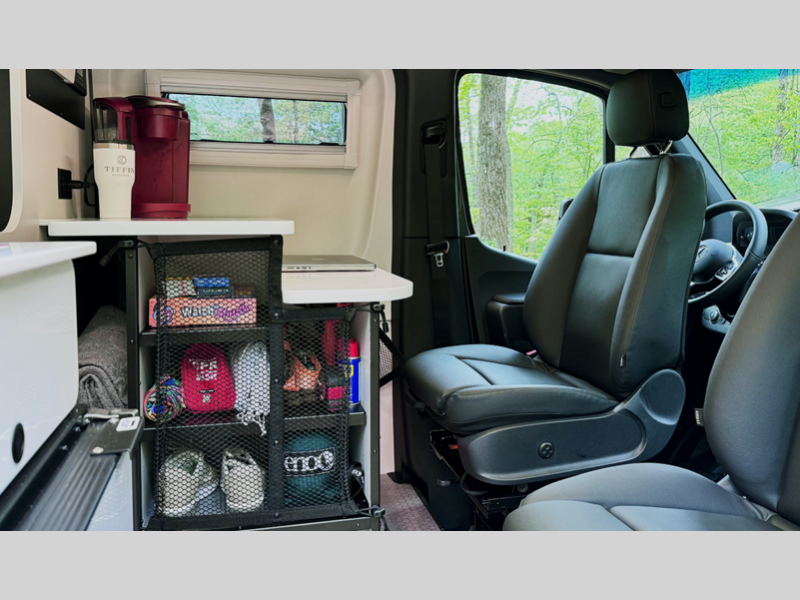

  • Swivel Bases for Driver and Passenger Seats
  • Leather Wrapped Steering Wheel with Integrated Controls
  • Keyless Start
  • Rain Sensor for Windshield Wipers
  • Automatic LED Headlights
  • Parking Package with 360° View Camera
  • Interior Rear-view Mirror
  • Crosswind Assist
  • Driver and Passenger Air Bags
  • Blind Spot Monitoring System
  • Emergency Call System
  • Smartphone Integration For Apple Carplay® and Android™ Auto
  • Mercedes-Benz® MBUX Multimedia System with 10.25” Touchscreen
  • Tray for Smartphones with Charging Ports
  • Intelligent Navigation
  • Powered Windows
  • Door-mounted Driver and Passenger Assist Handles
  • Powered Door Locks
  • Instrument Cluster with Color Display

Dinette and Living Area

  • Space-Saving, Fully Adjustable, Luxury Jump Seat with Ultrafabrics® Montage (Seating for 4)
  • Removable, Wall-mounted Swivel Table, and Overhead Cabinets

Dinette and Living Area Add-On

  • Adventure Bar Work/Storage Solutions (Removes Jump Seat) (Optional)

Kitchen

  • 12-Volt, 3.1-Cubic Foot Refrigerator with Freezer and Integrated Whiteboard
  • Portable Single-Burner Induction Cooktop
  • 12-Volt Roof Vent Fan
  • Stainless Steel Single Bowl Sink and Faucet with Built-in Sprayer
  • Galley Overhead Cabinets with Rigid Aluminum Frame
  • Removable Counter Extension

Bedroom

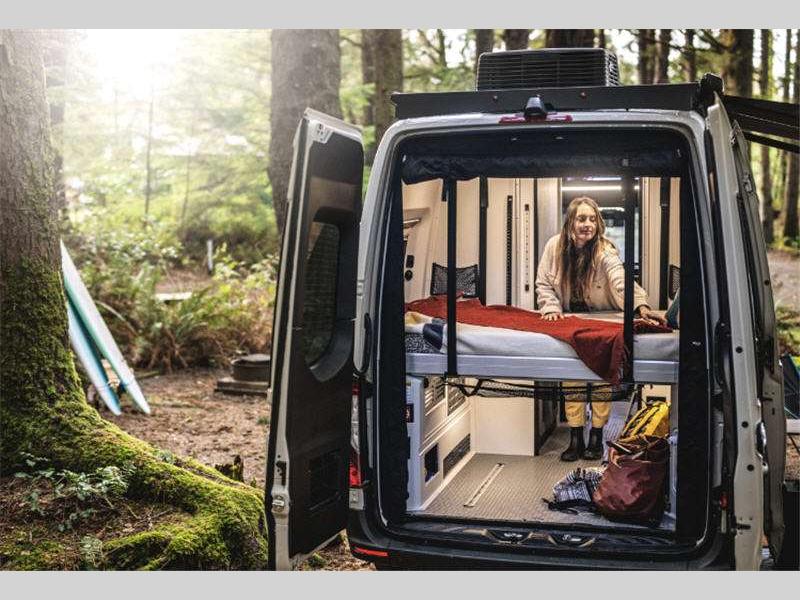

49" x 79" Power Lift Bed with Gear Garage Below

Bathroom

  • 24" x 36" Wet Bath with Toilet Platform
  • Handheld Shower Head
  • Shower Skylight
  • Cassette Toilet
  • Dry-roll Toilet Paper Dispenser
  • Roof Vent Fan
  • Water-Tight Storage Compartment

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
