Used 2017 Grand Design Reflection 28BH

Fifth Wheel

Stock #27692A

North Tonawanda, NY

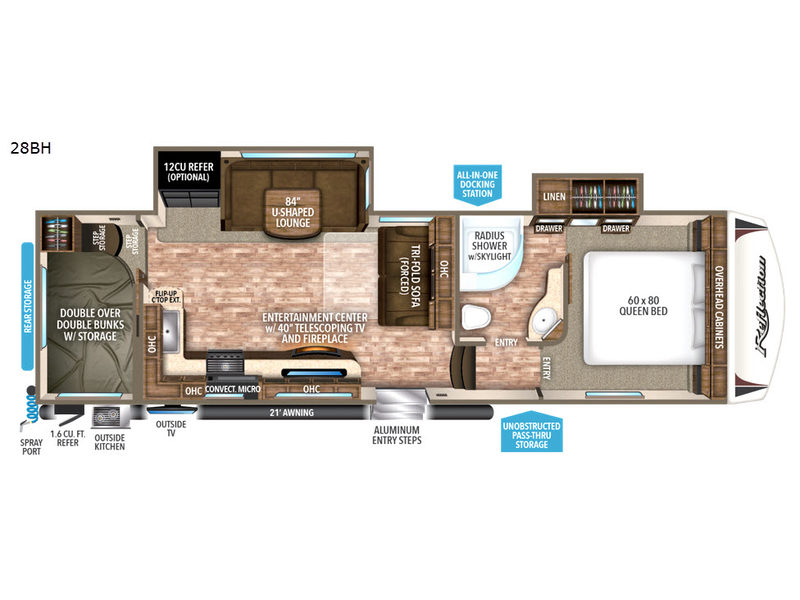

Floorplan - 2017 Grand Design Reflection 28BH

1 of 44

+44

Our Price: $32,998
List Price: $39,998
Discount: $7,000

Payments From: $244 /mo.

Sleeps 9
2 Slides
Bunkhouse

Outdoor Kitchen

34ft Long
8,875 lbs

See All Specs

Specifications

Sleeps	9	Slides	2
Length	33 ft 10 in	Ext Height	12 ft
Hitch Weight	1504 lbs	GVWR	10995 lbs
Dry Weight	8875 lbs	Fresh Water Capacity	60 gals
Grey Water Capacity	86 gals	Black Water Capacity	43 gals
Furnace BTU	40000 btu	Number Of Bunks	2
Available Beds	Queen	Refrigerator Type	Double Door
Refrigerator Size	8 cu ft	Convection Cooking	Yes
Cooktop Burners	3	Number of Awnings	1
LP Tank Capacity	30	Water Heater Capacity	6 gal
AC BTU	15000 btu	TV Info	LR 40" LED, Ext. TV
Awning Info	electric	Number of LP Tanks	2
Shower Type	Radius	VIN	573FR352XH3405006

Description

Grand Design Reflection 28BH - Fifth Wheel highlights:

There is enough room for the whole gang in this Reflection fifth wheel by Grand Design RV. Model 28BH offers dual slides, double size bunk beds, an outdoor kitchen and TV, plus so much more!

Check out the outside amenities before heading in. There is a spray port off the rear bumper next to the outdoor kitchen. You can easily enjoy cooking your meals here while enjoying the fresh air outside. You will find a 1.6 cu. ft. refrigerator, a two burner cook-top along with an outside TV nearby. The 21 foot awning provides a protected area from the sun and rain so you can enjoy hanging out in this outdoor living space. You will also appreciate the unobstructed pass-through storage mid coach and the all-in-one docking station too.

On the inside enter the combined kitchen and living area straight in the door and to your left. There is a tri-fold sofa along the interior wall, and a slide out 84" u-shaped dinette lounge and refrigerator with a 12 cu. ft. option.

Opposite and to the left of the entry door find an entertainment center with a 40" telescoping TV with fireplace below. Next, the kitchen area featuring a three burner range, convection microwave oven, and a large kitchen sink. Enjoy the cabinet storage provided for all of your dishes and things, plus a flip-up counter-top extension when you need just a bit more space.

In the rear there is sleeping for four with double size bunk beds, plus a wardrobe, and steps up to the top bunk with extra storage.

Back through to the main entry door head up the steps to a side aisle bath and front master bedroom. The bathroom features dual entry so you can easily access the wardrobe linen slide from inside. There is a radius shower including a skylight, a toilet, and a vanity with sink plus overhead cabinet.

In the master bedroom, which is accessible from the hallway door as well as from the bathroom, you will find a queen size bed. The slide out wardrobe/linen storage allows for a bit more foot traffic space around the bed. You will also find ample storage in the overhead compartments, plus side nightstands, and so much more!

Features

Standard Features (2017)

Exterior

Aerodynamic Front Cap with Max Turn Radius
Marine Grade LED Hitch Light (FW)
LED "Night Lights" Under Bedroom Slide (FW)
EQUA-FLEX Rubberized Suspension (FW)
Aluminum Wheels with E-Rated Tires
80% Tint Radius Safety Glass Windows
Battery Kill Switch in Pass Thru Storage Area
Extended Pin Box (FW)
30# LP Bottles (2)
30" Radius Entry Door
Outside Speakers
Outside Shower
Factory Installed Roof Ladder
Under Carriage Spare Tire and Carrier
High-Capacity Water Pump with Interior and Exterior Switch
Extra Large 1 1/2" Fresh Water Drain Valve

Interior

Hand Rubbed Maple Cabinet Doors
Solid Hardwood Drawer Fronts
Louvered Tread Steps to Bedroom (FW)
Solid Core Cabinet Stiles
Pre-drilled and Screwed Cabinetry
Ball Bearing Full Extension Drawer Glides
Tri-Fold Hide-A-Bed Sofa (Model Specific)
Deep Overhead Cabinets in Slide Out
Large Panoramic Slide Room Windows
Premium Beauflor Flooring with 7-year Warranty
Ductless Flooring Throughout Living Area
Residential Style Window Treatment
LED Lighting Throughout with Motion Sensors (Key Areas)

Kitchen

Gunstock Fixtures and Hardware
Deep, Undermount Kitchen Sink
Hardwood Galley Slide Trim Moldings & End Caps

Bathroom

Neo-Radius Shower Doors (N/A on Bedslides)
Wide View Skylight Over Shower
Heat Duct and A/C Vents in Bathroom
Custom Designed Shower Pan and Surround
Power Vent Fan
Extra Large Lav Top with Acrylic Sink
Large Medicine Cabinet with Mirror

Bedroom

King Size Wardrobe
Pillowtop Mattress
Oversized Underbed Storage
Residential Bedspread
Bedroom Heat Registers
Closeable A/C Vents
TV and Cable Prep

Construction

Gel Coated Tan Fiberglass Exterior
Residential 5" Truss Rafters (16" O.C.)
Walk On Roof Decking
Fiberglass and Radiant Foil Roof and Front Cap Insulation
One-Piece TPO Roof Membrane with 12-Year Warranty
Easy Access Low Point Drain Valves
Laminated Aluminum Framed Rear Wall (R-9)
Laminated Aluminum Framed Side Walls (R-9)
Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
Aluminum Framed Main Floor (R-30*)
Residential Wood Framed Roof (R-40*)
Aerodynamic Front Cap with Max Turn Radius
Laminated Aluminum Framed Rear Wall (R-9)

Ultimate Power Package (Mandatory)

One-Touch Electric Awning with LED Light
Power Stabilizer Jacks
HDMI/AM/FM/CD/DVD Bluetooth Stereo System
High Definition LED Television (Living Area)
50 AMP Electrical Service
Wired and Framed for 2nd A/C in Bedroom
Detachable Power Cord with LED Light
Power Rear Stabilizer Jacks
30" Convection Microwave Oven
15k BTU Ducted A/C
Maxx Air Fan w/Rain Sensor

Peace of Mind Package (Mandatory)

Residential Cabinetry
Solid Surface Countertops
Aluminum "Tread Lite" Entry Steps
Metal Slam Baggage Doors with Magna Latch
8 Cu.Ft. Double Door Refrigerator w/ Ext. Thermostat Control
17.8 Gal./Hr. Quick Recovery Water Heater
Porcelain Toilet with Foot Pedal Flush
Residential Single Lever Faucet with Pullout Sprayer
Universal All-In-One Docking Station
Black Tank Flush
Radius Fireplace
Solid Surface Sink Covers
Heated Wall Hugger Theatre Seats w/ LED Lights (NA 28BH)
Residential Booth Dinette
LP Quick Connect
Self Adjusting Brakes

Arctic 4-Seasons Protection Package (Mandatory)

35k BTU High Capacity Furnace
Thermofoil Wrapped Frame and Subfloor (Beneath Main Holding Tanks)
Heated and Enclosed Underbelly w/Circulating Heat
Ducted Heat to Pass Thru Storage Area (FW)
Heated and Enclosed Dump Valves
EZ Winterization Valve in Utility Center
Insulated Slide-out Floors
Attic Vent
Double Insulated Roof and Front Cap
Zero Degree Extended Season Enjoyment

Options

2nd A/C Low Profile 13.5k BTU Ducted (FW)
2nd A/C 15k BTU Ducted (TT)
One Touch Auto Leveling (Mandatory) (FW)
Free Standing Table and 4 Chairs (2 folding) (NA 28BH - Forced on 26RL)
2” Receiver Hitch (Mandatory)
Dual Pane Windows
12 cu. ft. Refrigerator (28BH, 307MKS, 311BHS, 312BHTS, 315RLTS, 337RLS, 367BHS)
Tri-Fold Sofa IPO Theatre Seating (Forced on 28BH)
King Bed (315RLTS, 337RLS, 367BHS)

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.
