+6-
24ft long
-
Sleeps 3
-
1 slides
-
3.2L I-5 Power Stroke Turbo
-
185 HP
-
3970 miles

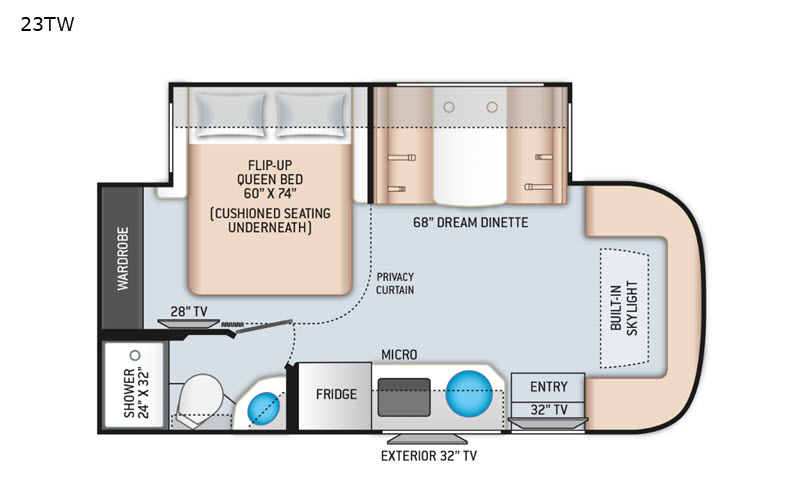

23TW Floorplan
Specifications
| Sleeps | 3 | Slides | 1 |
| Length | 23 ft 6 in | Ext Width | 7 ft 6 in |
| Ext Height | 10 ft 8 in | Int Height | 6 ft 8 in |
| Hitch Weight | 5000 lbs | GVWR | 10360 lbs |
| Fresh Water Capacity | 31 gals | Grey Water Capacity | 37 gals |
| Black Water Capacity | 19.5 gals | Furnace BTU | 19000 btu |
| Fuel Type | Diesel | Miles | 3970 |
| Engine | 3.2L I-5 Power Stroke Turbo | Chassis | Ford Transit |
| Horsepower | 185 hp | Fuel Capacity | 25 gals |
| Wheelbase | 156 in | Available Beds | Flip-Up RV Queen |
| Torque | 350 ft-lb | Refrigerator Type | Single Door Gas/Electric/LP |
| Convection Cooking | Yes | Cooktop Burners | 2 |
| Shower Size | 24" x 32" | Number of Awnings | 1 |
| LP Tank Capacity | 68 lbs | Water Heater Type | Tankless |
| AC BTU | 13500 btu | Basement Storage | 16.2 cu. ft. |
| TV Info | LR 32" TV, BR 28" TV, Exterior 32" TV | Awning Info | 14' Electric with LED Lights |
| Gross Combined Weight | 13500 lbs | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | 1FDWS8PV5KKA63487 |
Description
Thor Motor Coach Compass 23TW Class C diesel motorhome highlights:
- Flip-Up Bed
- Exterior TV
- Full-Wall Slide
- 24" x 32" Shower
- Built-In Skylight
Spend your time enjoying your surroundings instead of worrying about your accommodations with this Compass Class C diesel motorhome! This compact unit will allow you to have extra interior space once you've parked because of the full-wall slide, and it also allows you to have a cozy private bedroom in the back once you pull the privacy curtain shut. With the 32" TV in the central living area, the 28" TV in the bedroom, and the exterior 32" TV, you will always have a place to watch your favorite shows.
Get ready to set out to new destinations in a Compass Class C diesel motorhome. Along the exterior portion of the Compass you will find a Vacu-Bond laminated roof, walls, and floors with block foam insulation. Your extra camping gear can be stored in the Rotocast storage compartments with lights, and there is a power patio awning with integrated LED lights which will allow you to sit outside just a bit longer each night. The interior decor of the Compass has a modern and classy look with its residential vinyl flooring, Euro-style cabinet doors, and pressed laminate countertops.
Features
Standard Features (2020)
Construction and Exterior
- Ford® Transit Chassis 3.2L I-5 Power Stroke® Turbo Diesel, 185HP and 350 LB/FT Torque (23TW)
- Mercedes-Benz Sprinter - 3.0L V6 188HP 325 LB/FT Torque (N/A 23TW)
- 5,000 LB Trailer Hitch with 7-pin Round Connector
- Electric Stabilizing System (N/A 24SX)
- Welded Tubular Steel Floor
- Welded Tubular Aluminum Roof and Sidewall Cage Construction
- Vacu-Bond Laminated Roof, Walls, and Floors with Block Foam Insulation
- Partial-Paint on HD-MAX® Exterior with Graphics Package
- Front Cap
- One-Piece Fiberglass Front Cap with Integrated Wing Walls
- Fiberglass Rear Cap - Upper
- Fiberglass Rear Cap - Lower
- Rotocast Storage Compartments with Lights
- Flush Mount Radius Compartment Doors
- Premium One-Piece TPO Roof
- Power Patio Awning with Integrated LED Lighting
- Slide out Room Topper Awning(s)
- Roof Ladder (N/A 24SX)
- Exterior Grab Handle
- Electric Entry Step (N/A 23TW)
- Entry Door with Deadbolt Lock
- Black Frameless Windows
Automotive and Cockpit
- AM/FM Dash Radio with SYNC® 3, Navigation, 6.5” Color Multi-Function Display, Media Hub HD, and SiriusXM® Capability (23TW)
- Touchscreen Dash Radio with Navigation and Back-Up Monitor (N/A 23TW)
- Sirius Tuner and Antenna (N/A 23TW)
- Upgrade Living area Speaker tied to Wall Stereo
- Deluxe Heated/Remote Exterior Mirrors
- Power Windows and Door Locks
- Cruise Control
- Tilt Leather Steering Wheel with Audio Buttons to Control Dash Radio and Multi-Function Display (23TW)
- Tilt Leather Steering Wheel with Audio Buttons to Control Dash Stereo (N/A 23TW)
- Map Light
- Sun Visors
- Windshield Privacy Curtain
- Drink Holders
- Lane-Keeping System (23TW)
- Rear View Mirror with Back-Up Monitor (23TW)
- Back-Up Monitor (N/A 23TW)
- Three-Point Seat Belts for Driver and Passenger
- Leatherette Captain's Chairs - Passenger Chair Swivels with One Filler Cushion (23TW)
- Leatherette Swivel Captain's Chairs with Two Filler Cushions (N/A 23TW)
- Cockpit Carpet Mat
- Driver and Passenger Air Bags
- Keyless Entry System
- Stainless Steel Wheel Liners (N/A 23TW)
- Aluminum Wheels (23TW)
- Emergency Engine Start Switch (23TW)
- Dash Applique
Interior
- 80” Interior Ceiling Height
- Residential Vinyl Flooring
- Rubber Tread Entry Steps with Lighted Step Well
- Metal Entry Grab Handle
- Smoke, LPG, and Carbon Monoxide Detectors
- Fire Extinguisher
- Hard Vinyl Ceiling
- Ceiling Ducted Air Conditioning System
- Euro-Style Cabinet Doors with Nickel Finish Hardware
- Pressed Laminate Countertops
- LED Lighting
- Leatherette Theater Seating with Footrests (24SX)
- Leatherette Dream Dinette® Booth (23TW, 24TF)
- Leatherette Booth Dinette with Two Storage Drawers (24SX)
- Passenger Seat Belts in Select Areas
- Premium Window Privacy Roller Shades
- Ball Bearing Drawer Guides
Kitchen
- Single Door Gas/Electric/LP RV Refrigerator with Stainless Steel Door Inserts
- Two-Burner Gas Cooktop, Glass Cover, with Electric Start
- Protective Cover and Task Lighting Above Cooktop
- Convection Microwave Oven
- Large Undermount Stainless Steel Single Bowl Sink with Cover and Single Handle Kitchen Faucet with Pull-Down Sprayer
- Kitchen Waste Basket
- Ceiling Vent Kitchen 12V Powered with Switch
Bedroom and Bathroom
- Comfort Flex Euro-Style Bed Support - Flip-Up Full-Size Bed with Reversible Mattress & Cushioned Seating Underneath (24SX)
- Comfort Flex Euro-Style Bed Support - Flip-Up Queen-Size Bed with Reversible Mattress and Cushioned Seating Underneath (23TW, 24TF)
- Headboard, Bedspread, and Pillow Shams
- Bedroom USB Power Charging Center for Electronics
- Bedroom 12V Outlet CPAP Machine
- Pedestal Table Base in Bedroom (24TF)
- Pleated Privacy Door in Bedroom (24SX)
- Privacy Curtain in Bedroom (23TW, 24TF)
- Stainless Steel Bathroom Sink
- Foot Flush Toilet
- Power Bath Vent with Wall Switch
- Three Robe Hooks inside Bath
- Skylight in Shower
- Glass Shower Door (24SX)
- Shower with Deluxe Curtain and Curved Rod (N/A 24SX)
- 12V Attic Fan with Cover in Bedroom (Optional)
Entertainment
- 32” TV in Living Area (N/A 24SX)
- 40" TV in Living Area (24SX)
- 32" TV in Bedroom (N/A 23TW)
- 28" TV in Bedroom (23TW)
- Blu-Ray Player in Living Area
- Exterior 32” TV on Swivel Bracket with Bluetooth Sound Bar and Radio
- Digital TV Antenna
- Cable TV Ready
- HD/DSS Satellite Ready
- Living Area Bluetooth® Coach Radio System
- Living Area Power Charging Center for Electronics with Safety Net
Electrical and Plumbing
- Onan® RV QG 3600 LP Generator
- Onan® RV QD 3200 Diesel Generator (Optional; N/A 23TW)
- Rapid Camp+ Multiplex Lighting and Systems Control
- Winegard ConnecT 2.0 WiFi/4G/TV Antenna
- 30 AMP Detachable Shoreline Power Cord
- Automatic Shoreline-to-Generator Transfer Switch
- 13,500 BTU Low-Profile Air Conditioner
- 15,000 BTU Low-Profile Air Conditioner with Heat Pump IPO Standard Air Conditioner (Optional)
- Battery Disconnect Switch
- Second Auxiliary House Battery
- Solar Prep (includes solar controller)
- Tankless Water Heater
- Outside Shower
- 360 Siphon RV Holding Tank Vent Cap
- 1" Fresh Water Tank Drain
- Exterior LP Connection
- Holding Tanks with Heat Pads
- Black Tank Flush System
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
